ES76 1M EVO

Central motors for rolling shutters with springs

Versions

Code Description

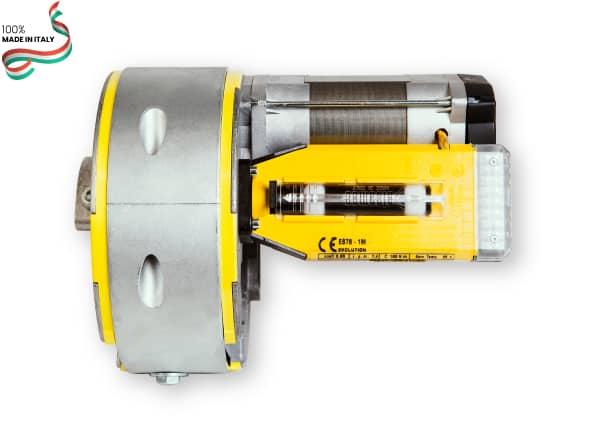

71810000 without electromagnetic brake

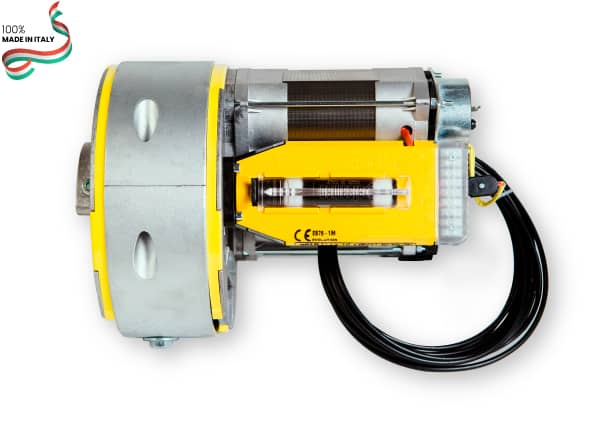

71820000 with electromagnetic brake
Ask for price-quotation

Features

Can be installed on all rolling shutters, even those already mounted

Easy and quick assembly

Simple and precise limit switch adjustment

Sintered electromagnetic brake

Quick and intuitive release

1 motor

Technical data

Dimensions

Download

Semi-automatic limit switch adjustment system

Sintered electromagnetic brake

Compensation springs 240 mm
Output torque on motor 190 Nm
Lift capacity 161 Kg
Power supply 230/115* V
Frequency 50/60 Hz
Consumption 2,8 A
Power 650 W
Protection Category IP 40
Output speed 7,4 RPM
Ø Installation shaft 76 mm

* available on request

electrobrake

brake cable 6 m
cod. 75140000

brake release handle

cod. 75360000

Mini Progress LED

control unit for remote control
cod. 79140012

Polaris

low voltage control
cod. 93350000

Mizar

two-channel trasmitter 433,9MHz
cod. 79020000

Julius

Photocells wall shielded
cod. 93790000

safety light curtains

Photoelectric sensors
cod. 93800020
cod. 93800026

flashing light


cod. 93740000

ES block

safety-brake system for ES series
cod. 78120000

switch panel

for indoor, wall-mounted
cod. 77160000

Raindrop

for outdoors
cod. 77180000

Selective

key selector
cod. 77760000

brake release kit for key-switch Selective

cod. 77800000

metal encased push button

with brake release
cod. 77250000

metal encased push button

without brake release
cod. 77240000

built in safe

with brake release
cod. 77320000

built in safe

without brake release
cod. 77310000

frame

cod. 77330000

caseback

cod. 77340000

brake release kit

cod. 77350000

release Kit

with cable and sheath
cod. 77370000

Sensitive

safety contactor
cod. 77940000
